The INDEC ClearView system represents a breakthrough in handheld in vivo fluorescence imaging instrument for small animals. Developed by INDEC BioSystems it performs in vivo whole body imaging of fluorescent structures, supporting a single probe of your choice from blue to NIR. It is an ideal for its compact and portable size as well as being optimized for a broad range of scientific applications, from basic research to pre-clinical drug screens.

ClearView is a portable personal single-wavelength instrument that complements your current fluorescence instruments and is available at a fraction of the cost of other in vivo imaging systems, making it the perfect solution for the individual lab. ClearViews modularity means you can always elect to change the wavelength with optional slide in modeles to adapt it to new experimental requirements. FluorVivo brings the power of in vivo imaging and analysis both to core facilities and the individual laboratory.

    Essential and Unique Features of ClearView
  • In vivo fluorescence imaging for a single probe from CFP and GFP out to ICG in the NIR (FluorVivo Probe List)
  • Portable - Bring the system to the animal
  • Real time multicolor imaging - images are in full color
  • Live video imaging and recording
  • Quantitative - manual and automated analysis capabilities included
  • A complete, turn-key system with the lowest cost of ownership on the market
  • Compatible with inhaled anesthesia
  • Interfacce to 'Living Image' software

ClearView is easy to configure, low cost and easy to use. You choose the probe and INDEC will equip your ClearView instrument with the Probe Adapter to match. The result is a fully configurable fluorescence imaging system, for a price previously thought impossible. ClearView is designed as the first truly portable, in vivo imaging instrument. Weighing less than 5 pounds, ClearView is ideally suitable for use just about anywhere it?s needed: in the hood, on the bench, or in the animal colony.

    Selected Features:
  • ClearView is a fully integrated system including a hand held imaging chamber and a Windows laptop, pre-loaded with the custom ClearView software.
  • Natural color images for an intuitive understanding of the results
  • Acquires time-lapse series, at predetermined time points
  • Streaming video acquisition.
  • Integrated white-light illuminator
  • Large field of view (100 mm diagonal) and 50 micrometer spatial resolution
  • External focusing adjustment
  • Simple and intuitive operation



DOWNLOAD
ClearView™ Brochure (pdf)
ClearView™ 800 Brochure (pdf)
Acquired Image
Fluorescence and white light images
Specimen and Image

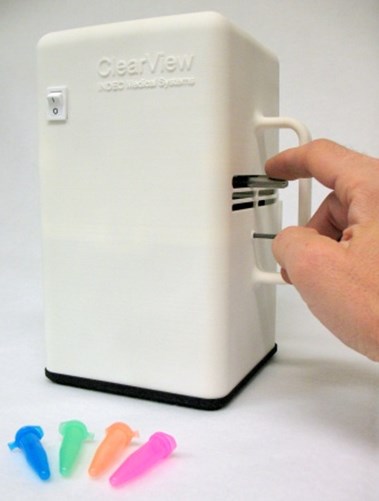

ClearView system
Screenshot
Merged white light and fluorescence images
